John Welter 2002 Pontiac TA

This gallery contains 3 photos.
John Welter has been on the list since May 2005 and he is a former #1 position holder with his Turbocharged 2002 Pontiac TA! The details of his car / engine combo are listed below. In May of 2012 John blew a transmission line which caused oil to get under the rear tires. That resulted in a bad accident which severely damaged the car. John was fine but the car has seen better days. John is currently building a new car and hopes to have it out late summer of 2014.



Driver Info:
Name:
John Welter
Age:
48
Residence:
Mitchellville, Iowa
Engine Info:
Engine Builder:
Butler Performance - Rodney Butler
CID:
440
Bottom End:
Block:
IA1
Production Year:
Bore:
3.80
Stroke:
3.65
Crankshaft:
Ram Air 5 Forging
Rods:
6.8 GRP Aluminum
Bearings:
Clevite
Pistons:
Ross
Rings:
Compression Ratio:
8 to 9 : 1
Cylinder Heads:
Manufacturer and Type:
Edelbrock
Heads ported by:
Butler Performance - Rodney Butler
Chamber size:
Flow #s (Intake & Exhaust)
370 cfm intake
Intake valve size:
2.11
Exhaust valve size:
1.77
Valvetrain / Camshaft:
Type: (solid flat, hyd flat, hyd roller, solid roller)
Solid Roller
Brand:Comp Cams
Lift:
Duration @ .050
Advertised duration:
Lobe Separation:
Installed position:
Firing Order (standard /4/7 swap / LS1):Standard Pontiac
Cam size (standard / 50mm / 55mm etc):Standard Pontiac
Rocker Arm (manufacturer & ratio):T&D Shaft System 1.65
Pushrod (manufacturer / length / wall thickness):Comp Cams .080 wall varying lengths
Lifter (manufacturer / type / size):Comp Cams
Power Adder:
Power Adder description (blower / turbo size type etc.):106 mm Turbonetics
Boost reached:40
NO2 (shot size / # of stages)
Fogger or Plate:
Manufacturer of system:
Fuel System:
Fuel Type (pump gas / alky / VP 110 etc.):Alky
Fuel Pump:Waterman
Induction System:
Intake Manifold:Victor Aluminum 4 bbl
Carb (type / size / manufacturer / injected):Injected
# of Carbs:
Spacer Plate / Thickness:
Ignition:
Distributor:MSD
Wires:MSD
Coil:MSD
Plugs:NGK-8
Timing:
Ignition Box / Amplifier (MSD etc.):MSD-7AL2
Car Info:
Exhaust:
Headers (manufacturer)Custom for Turbo App - Travis Quillen
Primary Tube:
Collector:
Exhaust Pipes:
Mufflers:
Crossover:
Drivetrain:
Transmission:Lenco
Trans Built by:Travis Quillen
Converter (manufacturer & stall)PTC
Converter Size (9" / 10" etc.):9"
Clutch Manufacturer:
Clutch Size:
Rear End Gear:3.89
Spool or Locker:Locker
Shifter:Lenco
Axels (manufacturer & spline count):40 Spline Mark Williams
Chassis & Suspension:
Year Built:2002 Tube Chassis 6.0 Cert
Race wight with driver:2600 - 2740 with Driver
Chassis Built by:Massey Chassis
Model:2002 Pontiac TA
Body Work & Paint:Welter Auto Body
Tires - Front:24" Goodyear
Tires - Rear:33.5" Goodyear
Wheels / Rims - Front:
Wheels / Rims - Back:
Chassis Mods:
Driver Bio:
Car Owner Bio:
Timeslip:6.827 ET @ 204.08 mph

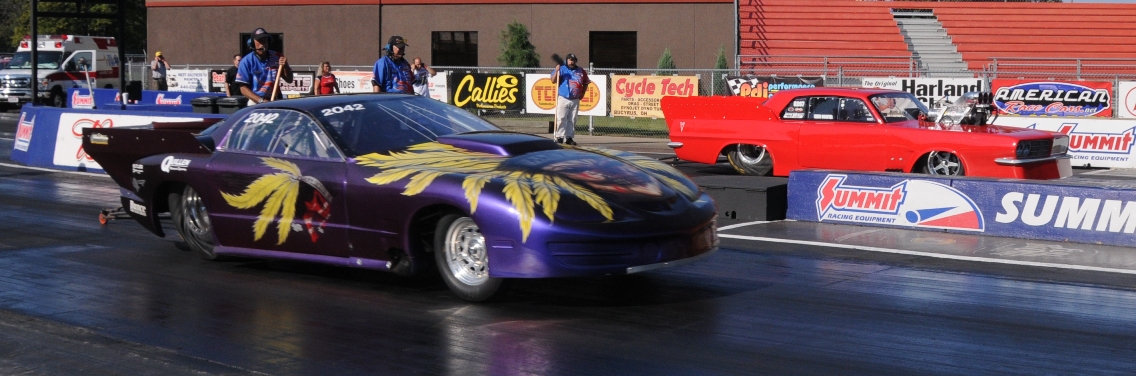

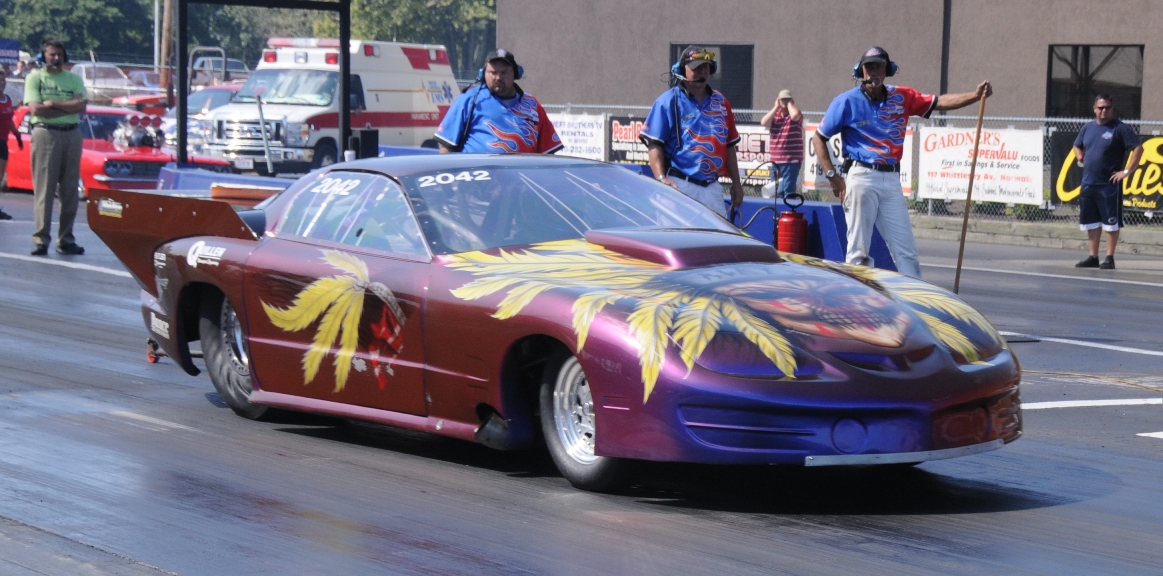

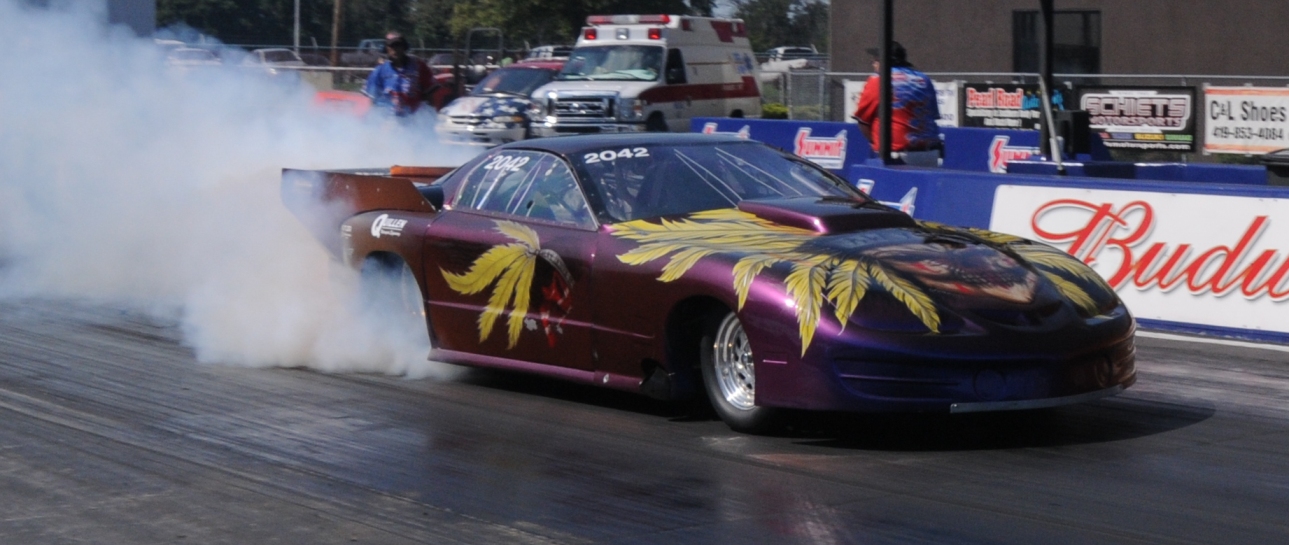

Unfortunately we do not have any video of John’s 2002 Pontiac TA pictured above.
